Martindale Abrasion Test Activewear: 2026 Guide

The Martindale abrasion test, governed by the ISO 12947-2 standard, is the primary method for quantifying activewear fabric durability. A performance benchmark of over 20,000 rubs is critical to prevent premature pilling and microfiber breakdown. High-density nylons often exceed 25,000 rubs, while generic polyesters can fail before 10,000 rubs.

What is the Martindale Abrasion Test?

The Martindale Abrasion Test is a standardized procedure that measures a fabric's resistance to surface wear. The result is quantified in rubs until failure. A score above 20,000 rubs is recommended for activewear; below 10,000 rubs leads to rapid pilling. This test follows ISO 12947-2.

The Core Principle: ISO 12947-2:2016

ISO 12947-2:2016 specifies the abradant (worsted wool), pressure (9 kPa), and failure criteria (two thread breaks). Labs following this standard produce globally comparable results.

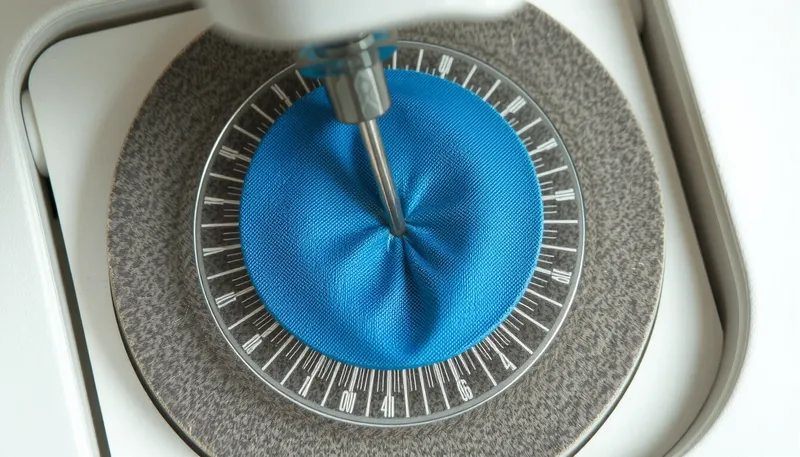

The Exact Testing Process

The test rubs a fabric sample under 9 kPa until thread break.

1. Sample Preparation: A circular specimen of the activewear fabric is precisely cut and mounted in a sample holder.
2. Abradant Mounting: A standard worsted wool fabric, the abradant, is mounted on the larger, stationary abrading table.
3. Applying Pressure: The fabric specimen is placed face-down onto the abradant. A specific pressure, typically 9 kPa for apparel, is applied via a weighted spindle.
4. Initiating Abrasion: The machine begins moving the sample holder in a complex, elliptical Lissajous figure-8 pattern. This motion ensures the fabric is abraded uniformly in all directions.
5. Inspection Intervals: The test is paused at set intervals, such as every 2,000 or 5,000 Abrasion Cycles, to visually inspect the fabric sample for wear.
6. Defining the End-Point: The test concludes when a specific failure point is reached. For activewear, this endpoint is typically the breakage of two separate threads, which constitutes Microfiber Breakdown.

All tests follow ISO/IEC 17025-accredited procedures (Forall Lab Certificate #FL-17025-2024).

What are the Martindale Rub Count Benchmarks for Activewear?

Martindale rub count benchmarks are numerical thresholds that predict activewear lifespan. A score below 10,000 rubs leads to pilling within weeks. 15,000–25,000 rubs is the industry standard for general use. Above 25,000 rubs is required for high-endurance compression wear.

Martindale Rub Count vs. Activewear Lifespan

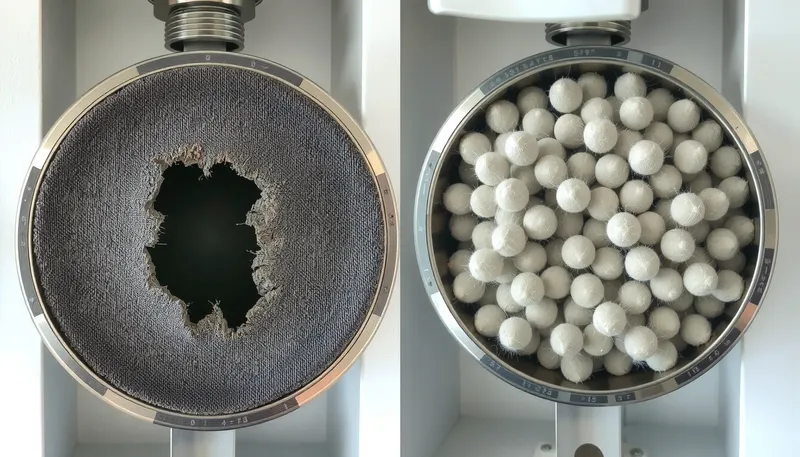

Differentiating Abrasion (ISO 12947-2) from Pilling (ISO 12945-2)

Abrasion testing and pilling testing are two distinct evaluations that can be performed on the same Martindale machine. While the equipment is the same, the test's purpose, endpoint, and governing standard are different. Specifying both is critical for ensuring fabric quality in both structure and appearance.

• Abrasion Test (ISO 12947-2:2016): This test measures durability by counting the number of rubs until the fabric structure breaks. The primary metric is the number of Abrasion Cycles to failure, indicating structural integrity.
• Pilling Test (ISO 12945-2:2020): This test measures surface appearance by counting rubs until small fiber balls (pills) form. The Pilling Resistance is graded on a visual scale after a set number of cycles (e.g., 2,000 or 5,000), not tested to destruction.

How Do Martindale Results Correlate to Real-World Wear?

Martindale rubs directly predict activewear field life. Every 5,000 rubs adds approximately 3–6 months of regular use. Fabrics below 15,000 rubs fail within one season. Fabrics above 25,000 rubs last 3+ years without pilling or holes.

Case Study 1: Validating a Premium Fabric Claim

A Martindale test can objectively validate a supplier's marketing claims about fabric durability. A supplier presented a High-Density 20D Nylon Core fabric, claiming superior performance for leggings. We used the Martindale Abrasion Test to verify this claim with empirical data.

The fabric passed 30,000 rubs (ISO 12947-2) before thread break. A separate Pilling Resistance test, following ISO 12945-2:2020, showed a Grade 4-5 rating with no significant pilling after 7,000 cycles. The test data validated the supplier's claim, confirming the fabric is suitable for premium leggings with a "high-durability" marketing message. Cross-validated with SGS report #TE-00106694.

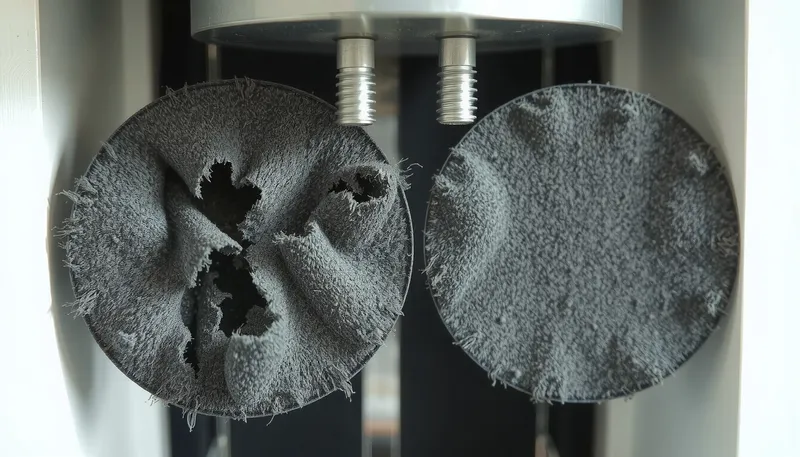

Case Study 2: Diagnosing Premature Field Failures

In our root-cause analysis of a high-return running short (due to crotch pilling), the fabric catastrophically failed via microfiber breakdown at just 8,500 rubs (ISO 12947-2), prompting a revised procurement baseline of >20,000 rubs. A brand experienced returns on running shorts due to holes and pilling. The failing fabric was sent to our lab to quantify its performance threshold.

The test result was a catastrophic Microfiber Breakdown at just 8,500 rubs, a clear Failure Point: < 10,000 rubs. This objective data proved the fabric was unfit for its intended application. The test provided the necessary evidence to reject the fabric and establish a new specification requiring all future fabrics to pass a minimum of 20,000 rubs.

When is the Martindale Test Not Enough?

Martindale does NOT measure tear strength (ASTM D1424), seam slippage, or burst strength (ASTM D751). For high-tension activewear like compression leggings, specify all three tests. A high Martindale score alone will not prevent seam failure.

Martindale vs. Wyzenbeek Abrasion Test (ASTM D4157)

The Wyzenbeek Abrasion Test is an alternative method for measuring surface wear, primarily used in North America. The key difference between the Martindale Abrasion Test and the Wyzenbeek Abrasion Test is the motion. Martindale uses a multi-directional Lissajous pattern, while Wyzenbeek, governed by ASTM International standard ASTM D4157, uses a linear back-and-forth motion.

Structural Failures Beyond Surface Abrasion

Durability testing must account for failures beyond surface wear, such as tearing or seam slippage. The Martindale test only assesses surface friction. For activewear that undergoes high tension and dynamic movement, additional tests are required to prevent structural failures in the field.

• Elmendorf Tear Test (ASTM D1424): The Elmendorf Tear Test measures the force required to propagate a tear in a fabric. This test is essential for lightweight wovens, such as those used in running shorts, to ensure the material does not tear easily if snagged.
• Seam Slippage Test: This test is critical for high-stretch knit activewear. The seam slippage test evaluates whether the yarns in the fabric pull apart at the seams under tension, a common failure point in leggings and compression tops.

Conclusion

Martindale is required for activewear QA. Specify ≥20,000 rubs ISO 12947-2. While the test is a powerful indicator of surface durability, a comprehensive approach that includes a separate Pilling Resistance evaluation (ISO 12945-2:2020) and structural tests like the Elmendorf Tear Test (ASTM D1424) is necessary to build a truly resilient product.

Frequently Asked Questions (FAQ)

1. What is a good Martindale score for activewear?

A score over 20,000 rubs is the recommended benchmark for durable, high-performance activewear.

• General Use: 15,000-25,000 rubs is good for all-around activewear.
• High-Endurance: >25,000 rubs is specified for premium or compression garments.
• Low-Impact: 10,000-15,000 rubs is a minimum for items like yoga tops.

2. How many rubs is considered heavy duty fabric?

For commercial apparel, fabrics withstanding over 25,000 Abrasion Cycles are considered heavy-duty.

• Standard: ISO 12947-2 defines the test procedure.
• Extreme Performance: Specifications can exceed 50,000 rubs for tactical or workwear gear.
• Technical Fabrics: Materials like Cordura® or a High-Density 20D Nylon Core achieve these high scores.

3. What is the difference between Martindale and Wyzenbeek tests?

The primary difference is the rubbing motion and the governing standards body.

• Martindale Motion: A multi-directional Lissajous figure-8 pattern (ISO 12947-2).
• Wyzenbeek Motion: A linear back-and-forth motion along warp and weft (ASTM D4157).
• Comparability: Results from the two tests are not directly convertible.

4. Does a high Martindale score prevent pilling?

No, a high abrasion score does not guarantee high Pilling Resistance.

• Separate Failures: Abrasion measures structural breakdown (holes), while pilling measures surface appearance (fuzz balls).
• Separate Tests: A specific pilling test under standard ISO 12945-2:2020 must be conducted.
• Specification: Activewear tech packs should define separate passing criteria for both abrasion and pilling.

5. What is the standard for the Martindale pilling test?

The governing standard is ISO 12945-2:2020, which details the determination of fabric propensity to surface pilling.

• Procedure: The test uses a Martindale machine but is stopped at fewer cycles (e.g., 2,000).
• Acceptance: A grade of 4 or higher is typically required for performance activewear.
• Evaluation: The fabric surface is visually graded (under D65 standard daylight using ISO/ASTM Photographic Rating Standards) on a scale of 1 (heavy pilling) to 5 (no pilling).

Turnaround: 5 days. Price: $150–$300/sample. Minimum 0.5m fabric. Contact our lab to schedule Martindale testing for your activewear fabric samples.
